Inline Equipment

Inline equipment represents machinery like Straight Feeders and Surge Bins.

Inline equipment does not affect material gradation or flow rate - whatever material enters the machine passes through it.

Use these machines to simulate actual plant setups and set warning rates for the amount of material.

To Install Inline Equipment

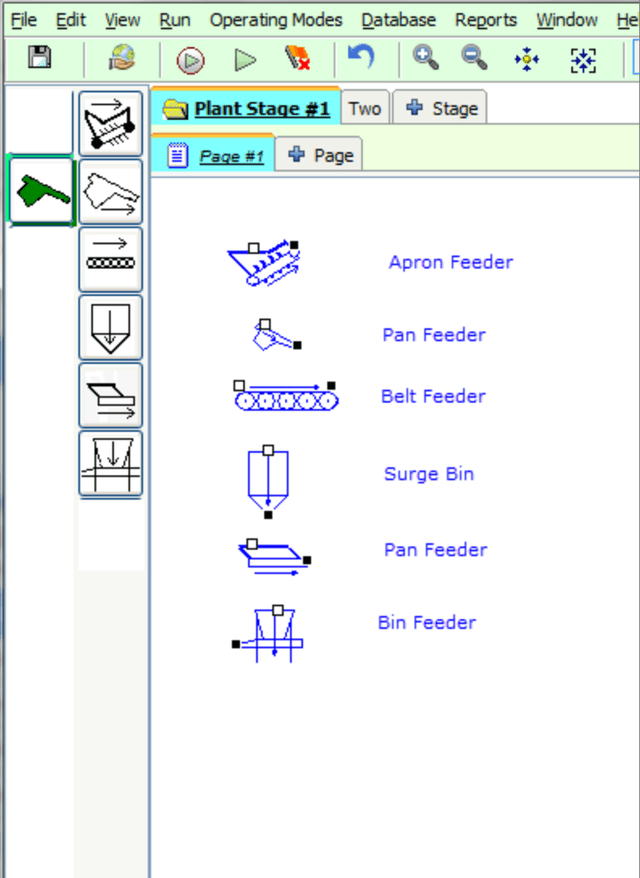

1. Select the Inline category.
2. Select a machine and place it on the worksheet (it will turn blue ).

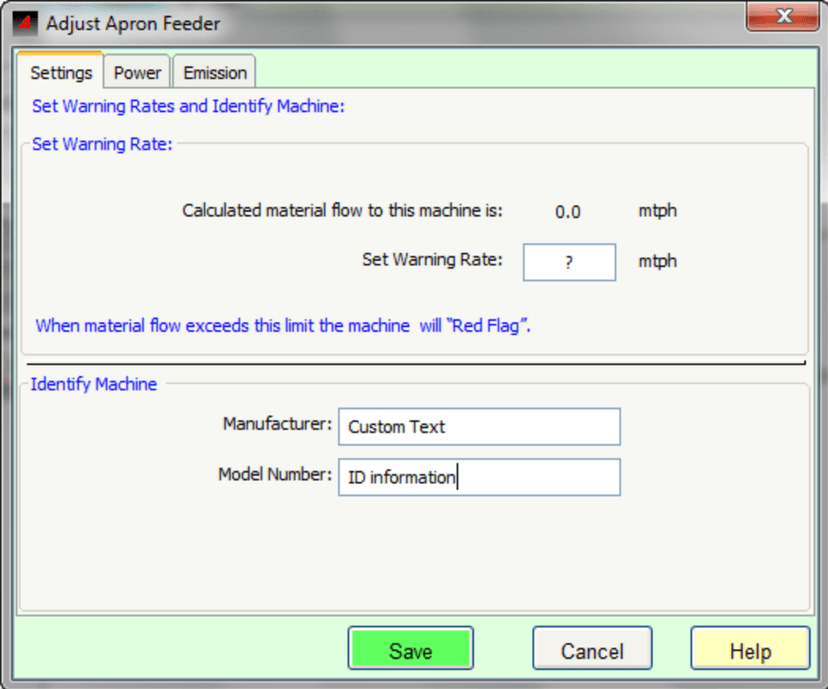

3. Right-click and select Adjust Setup from the short-cut menu.
4. Set the Warning Rate, identify the make/model of the machine and track Power and Emission attributes.
